Stepped chip conveyor

The assembly of the stepwise chip removal machine consists of a hydraulic system, an electrical control system, a trough, a chip pushing rod, etc. It is a chip removal device driven by a reciprocating power source, which continuously pushes the chips forward. The stepwise chip removal machine is mainly used for the transportation of various types and shapes of chips in dry or wet processing. It is particularly suitable for the transportation of long, rolled, and clumped chips produced by the production line and assembly line of heavy machine tools for steel parts. The stepwise chip removal machine can be installed on the ground or in a trench according to user requirements. A single unit can be made into a transportation line of about 20-80 meters. It is especially suitable for the centralized transportation of special materials such as bearings, train wheels, rolls, and swivel supports. Installation method: The stepwise chip removal machine is usually installed in the chip removal trench under the ground. However, in certain specific situations, it can also be installed above the ground or installed on a support.

The stepwise chip-discharging machine can be customized according to the requirements of the drawings. It can also be designed based on the group structure diagram or pit diagram provided by your side. If necessary, on-site measurement and design can be carried out at your location.

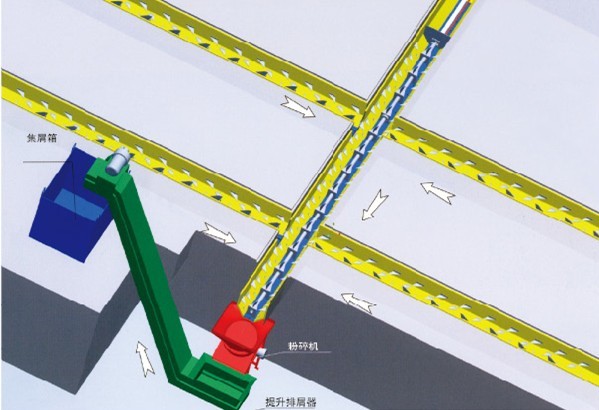

Multiple combinations can be installed to form a centralized chip-disposal system.

— It can effectively transport various shapes of metal or non-metal chips produced during wet or dry processing.

— Cutting fluid

— For lengths less than 120 meters, only one power head is required, with a low driving power and low operating cost.

Once installed, the failure rate is extremely low and the daily maintenance costs are very low.

— It can be installed in the trench, or it can be suspended or supported for installation.

The stepwise chip-discharging machine can be customized according to the requirements of the drawings. It can also be designed based on the group structure diagram or pit diagram provided by your side. If necessary, on-site measurement and design can be carried out at your location.
